Highcharts - Realtime

From Cumulus Wiki
Jump to navigationJump to search
Name: Realtime_Highchart
Type: PHP,AJAX
Author: Mark Crossley
Contact: 'MCrossley' via the forum
Last update: 29 November 2012
Version: 1.0

Dynamically Updating a Highcharts Graph from Realtime.txt

This page describes how to implement a simple dynamically updating chart using Highcharts, PHP, realtime.txt, and AJAX.

Requirements

The web server must have..

  • PHP
  • Cumulus Realtime.txt

Installation

Next you have to decide where and how the realtime log file will be created. The zip file contains a simple Windows batch file that will create a log file of a specified length. If you have a Windows web server you could run it directly on there (this is how I do it), or run it on your Cumulus computer and get Cumulus to upload the log file periodically.

Wherever you run the batch file to create the realtime log, you will also need a copy the 'tail.exe' utility from the GNU utilities for Win32 zip file.

Alternatively Kevin at TNET Weather has created a PHP script to create such a log file. The batch file is simple and creates a limited length log file, the TNET scripts typically create much larger log files.

A third alternative is to use Cumulus Toolbox, which has the option to create a realtimelog.txt in your Cumulus folder, You can then use Toolbox to copy of FTP this file to your web server. Toolbox has has the option to 'prune' the logfile, with a granularity of 1 day.

The result

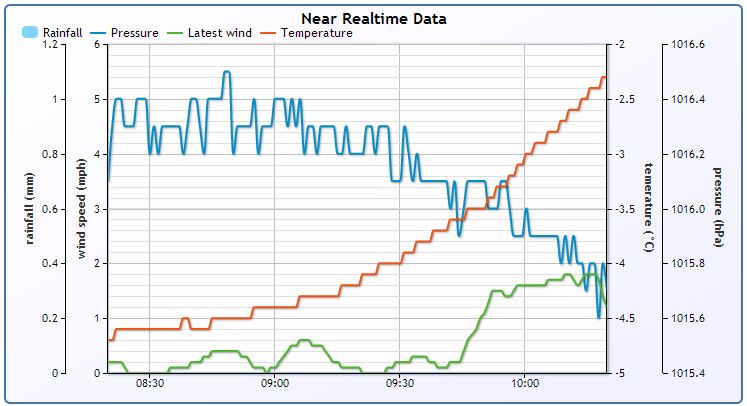

You should end up with a default graph looking something like this RealtimeHigharts.JPG

Configuring the graph

For consistency, the graphed data ranges are all referred to by their equivalent Cumulus webtag names.

The supplied files are configured to display the current rainfall, atmospheric pressure, average wind speed, and temperature. If you want to change this there are three areas of the realtimeCumulus.js file that will require editing:

  • parseRealtime function: Change or amend each of the "chart.series[].addPoint()" lines. The order here must match the options.series changes below...
  • options.yAxis object: Change or amend each yAxis scale to match your desired data series.
  • options.series array: Change or amend each data series to match your desired data series. Note the reference back to the corresponding yAxis number.
  • $.ajax url: Change or amend the required data series in the url construction.

What next?

That is left as an exercise for you :), maybe include this in an AJAX enabled 'Conditions now' page - similar to the supplied Cumulus index.htm? This is what I have done here.

The realtimeLogParser.php can also be used for any other purpose you like too ;)

Version Control

  • 1.0 - 29 Nov 2012 - First release [Download]
